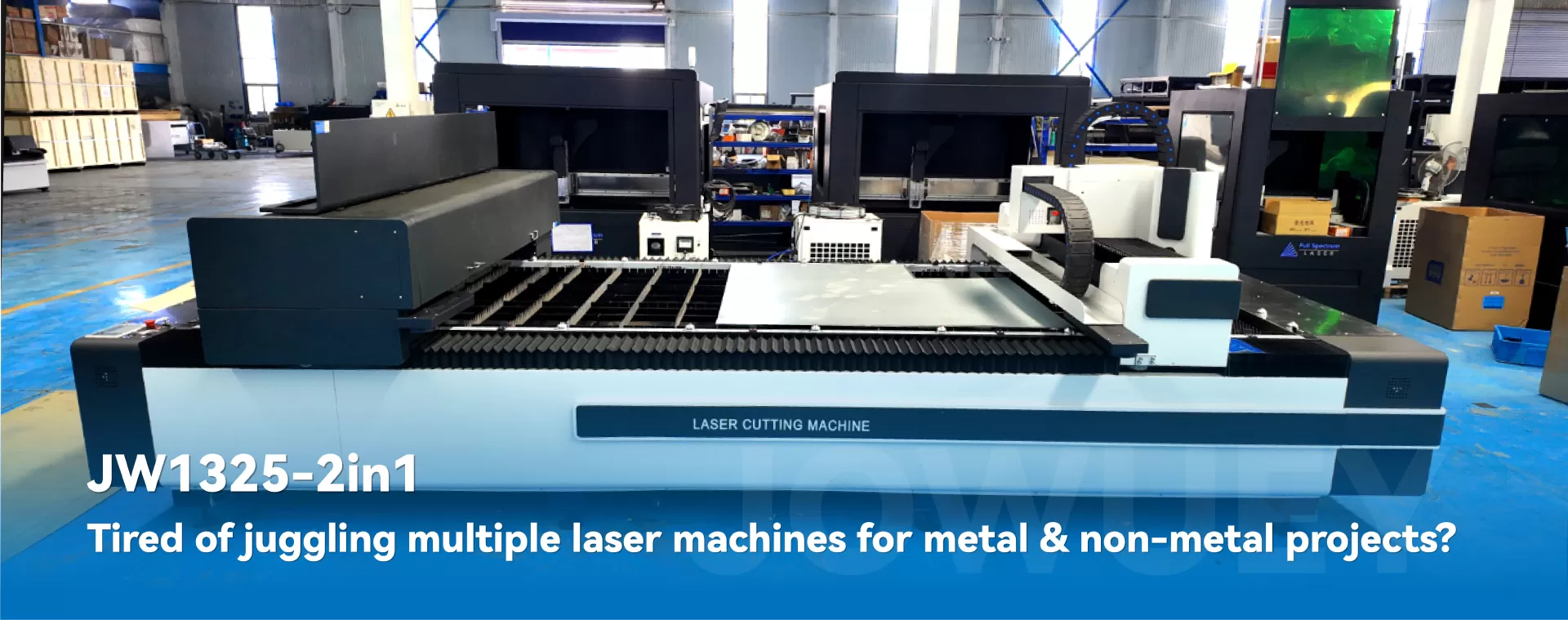

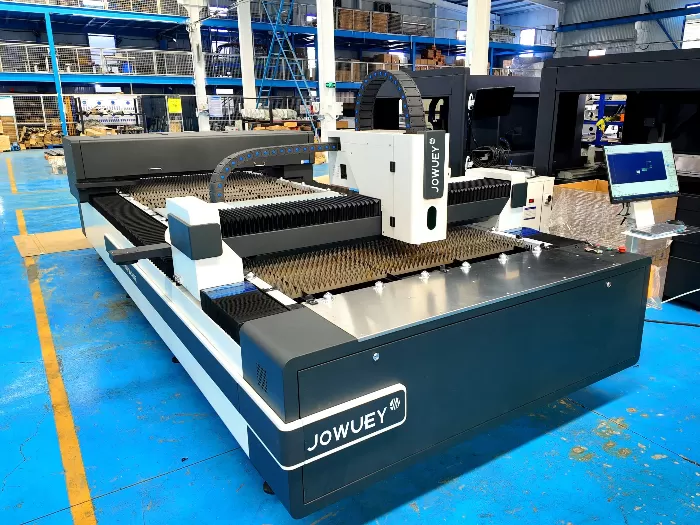

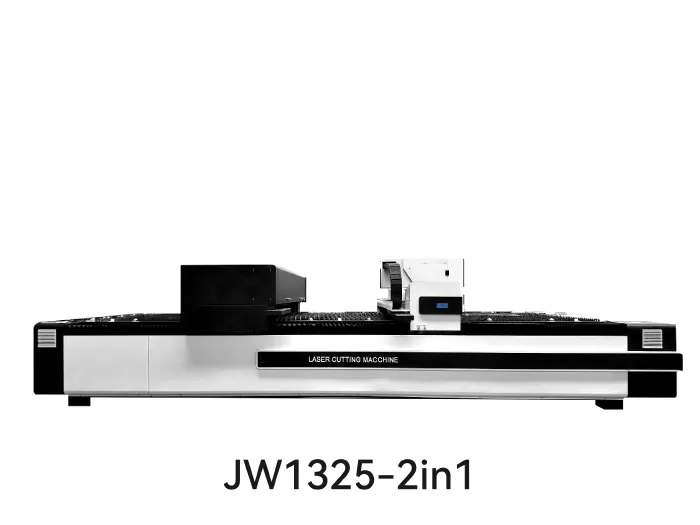

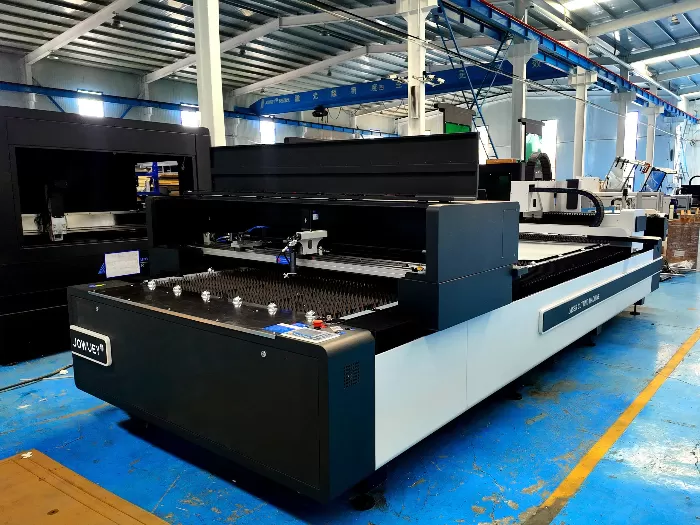

1325 Dual Head Hybrid Fiber and CO2 Laser Cutting Machine

★★★★★

JW1325-2in1

Work Area - 4×8 ft / 1300× 2500 mm

Meeting CE Standards in Terms of Quality & Safety

24-Month Limited Warranty for Entire Machine

Consumables Provided at Agent Price

Free Lifetime Technical Support

Inquire Now Next Product Download Price List

Features

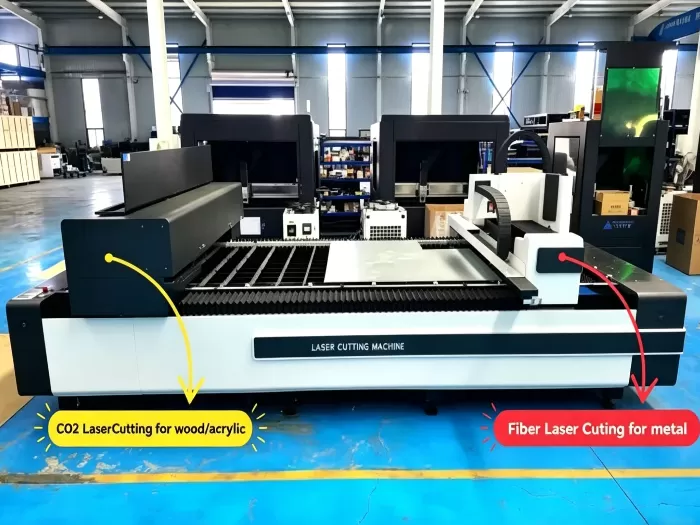

The JW1325-2in1 is a hybrid fiber and co2 laser machine that puts both metal and non-metal cutting capabilities into a single system. Instead of buying two separate machines, you get one 1300x2500mm work area that handles stainless steel, carbon steel, acrylic, and wood. It saves floor space, reduces investment cost, and simplifies operation—all while delivering professional cutting quality.

One machine cuts both metal and non-metal – no need to purchase separate fiber and CO₂ lasers

Saves valuable workshop space with a compact dual-laser design

Heavy-duty frame ensures stable cutting quality day after day

Easy to learn and operate with user-friendly control software

Parameters

Fiber Laser Cutting Parameters
Application	LASER CUTTING
Applicable Material	Metal
Condition	New
Laser Type	Fiber Laser
Cutting Area	1500mm*3000mm
Guide rail	HINWIN
Graphic Format Supported	AI, BMP, Dst, Dwg, DXF, DXP, LAS, PLT
Cutting Thickness	0-100mm
CNC or Not	Yes
Cooling Mode	WATER COOLING
Control Software	cypcut
Place of Origin	China
Reducer	shimpo
Laser Source Brand	MAX
Laser Head Brand	Boci-BLT310
Servo Motor Brand	Servo
Control System Brand	Cypcut
Weight (KG)	2000KG
CO2 Laser Cutting Parameters
Model	CO2 Laser 1325M7-C
Laser tube	Reci (Option:EFR, Yongli)
Laser type	Glass cavity sealed CO2 laser wavelength 10.6um
Laser tube cooling	Pure circulating water cooling
Model	1325/1625/1530/2030/2040
Working voltage	AC 220V±10%, 50/60HZ
Total power	＜3KW
Energy regulation	0-100%stepless control,0-100% adjustable in software
Control system	Ruida control system
Motor and Drive	Stepper motor and driver
Transmission	Belt for X axis, gear rack transmission for Y axis
Table	Blade or Honeycomb
Positioning accuracy	≤±0.05mm
Cutting speed	0-600mm/s
Engraving speed	0-1200mm/s
Supporting Software	Photoshop, AutoCAD, CoreLDRAW
Gross Weight	450kg
Logistical Packaging	195017001250mm

Machine Details

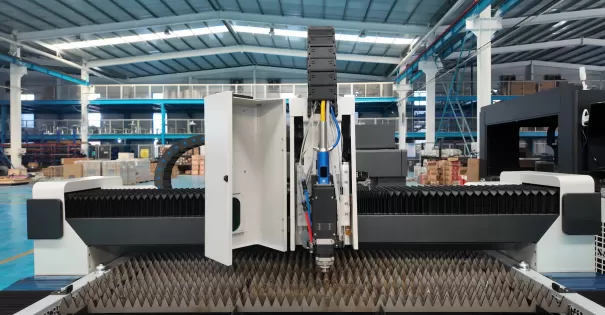

Fiber Laser Head Boci-BLT310

Anti-collision design,  height adjustment high  sensitivity.

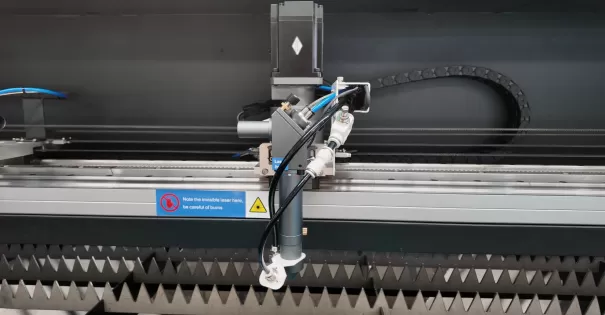

CO2 Laser Head

The laser head is equipped with a scale and digital adjustment, which is simple and convenient

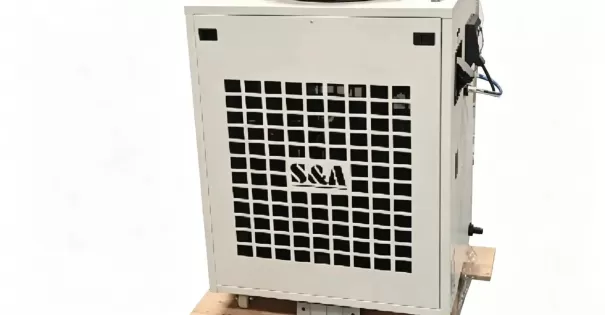

Water Chiller

Precision water chiller, the temperature can be  controlled +0.3℃, it has two functions of con-  stant temperature and intelligent temperature  regulation.

Industry Applications

Plastic

Leather Cutting

MDF Craft
