$10699 - $13000

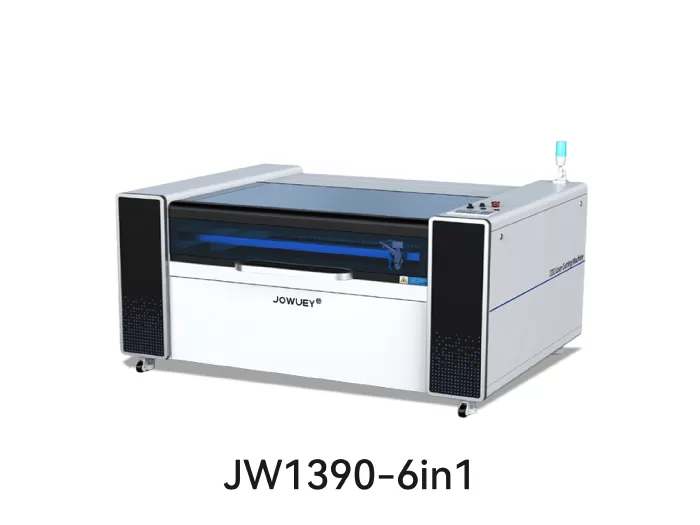

China 6 in 1 Welder and Cutter Machine Cnc

★★★★★

JW1390-6in1

Work Area - 4×3 ft / 1300× 900 mm

Meeting CE Standards in Terms of Quality & Safety

24-Month Limited Warranty for Entire Machine

Consumables Provided at Agent Price

Free Lifetime Technical Support

Inquire Now Download Price List

Features

The JW1390-6in1 integrates six functions in one compact unit: CO2 cutting, CO2 engraving, CNC fiber laser cutting, handheld laser welding, handheld laser cutting, and handheld laser cleaning. With a 1300x900mm working area, 1200W fiber laser, and 130W CO2 laser, it handles metal and non-metal materials with precision. Equipped with servo motors and linear guides, it delivers fast switching between functions for versatile fabrication.

Six functions in one: CO2 cutting, engraving, fiber cutting, handheld welding, cutting, and cleaning

1200W fiber laser cuts 0.5-3mm metal; 130W CO2 laser cuts up to 25mm acrylic and wood

Handheld welding supports spot, continuous, and pulse modes for stainless steel and aluminum

Modular laser head design enables quick switching between fiber and CO2 applications

Parameters

Parameters	1390-M7S-6-in-1
Laser Power	1200W Fiber Laser +130WCO2 Laser
Functions	Welding/cutting/Rust Removal & cleaning/CNC Metal cutting/co2 cutting/co2 Engraving
Cutting Thickness	Up To 0.39 in (10mm) with 1,200W Fiber Laser source / Up To 1 in (25mm) with 130W Co2 Laser Tube
Working Area	54.3x36.2 in (1,380x920mm)
Max. Working speed	800 mm/s
Cable Length	8m
Acceleration	1G
Exhaust Fan Ca- pacity 2,800 RPM (±10%)	Industrial centrifugal Fans
Motor	Servo Motor
Guide Rail	Linear Guides Rail
Software	Professional industrial Control Software
Weight	610kg/1340 lbs

Category	Material	Thickness	Key Parameter	Note
1200W Metal Cutting	Stainless Steel	1-6mm	Speed: 0.6-15m/min	Thicker = Slower speed
	Aluminium	1-4mm	Speed: 1.2-15m/min	High reflectivity material
	Brass	1-3mm	Speed: 1.2-15m/min	High reflectivity material
	Carbon Steel	1-12mm	Speed: 0.4-15m/min	Max cutting thickness 12mm
CO2 Laser Cutting	Acrylic	3-25mm	80W: 1-25mm/s 130W: 1-35mm/s	Higher power = Faster speed
	MDF/Wooden Board	3-15mm	80W: 5-20mm/s 130W: 4-30mm/s	Exclude rare hard wood
	Leather/Cloth/Paper	Single layer	80W: 45-300mm/s 130W: 60-350mm/s	High speed for thin materials
	PVC	2-4mm	80W: 45-60mm/s 130W: 65-80mm/s	Need ventilation for fume
	Two-color Board	2mm	80W: 35mm/s 130W: 45mm/s	Suitable for engraving & cutting
1200W Welding	Stainless Steel	0.5-3.0mm	Scan width: 1.5-4.5mm	Support spot/continuous/pulse welding
	Carbon Steel	0.5-3.0mm	Scan width: 1.5-4.5mm
	Aluminium	1.0-2.0mm	Scan width: 2.5-4mm

Machine Details

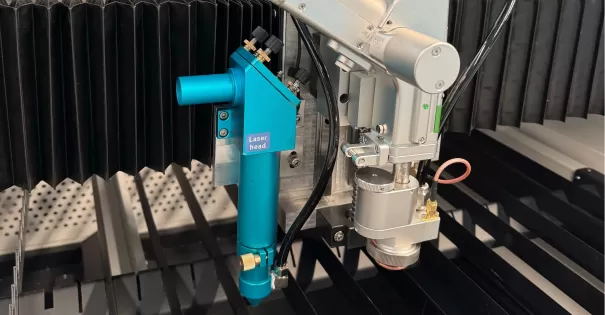

Laser Head

The cutting head remains engaged without returning to the origin after each operation, allowing rapid jumps and precise positioning across the workpiece to achieve seamless, high-efficiency cutting cycles. Modular laser head (Fiber/CO₂) design enables fast switching between cutting, welding, cleaning, and engraving—just swap the head and adjust parameters.

Industry Applications

Plastic

Leather Cutting

MDF Craft

Video
