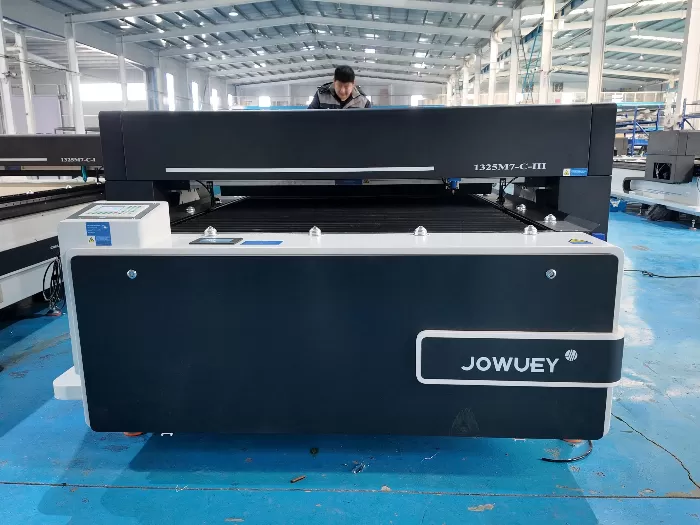

3D Curve Surface Materials Follow Head Auto Focus Co2 Laser Cutting
★★★★★
JW1325-AutoFocus
Work Area - 4×3 ft / 1300× 900 mm
Meeting CE Standards in Terms of Quality & Safety
24-Month Limited Warranty for Entire Machine
Consumables Provided at Agent Price
Free Lifetime Technical Support
Features
01

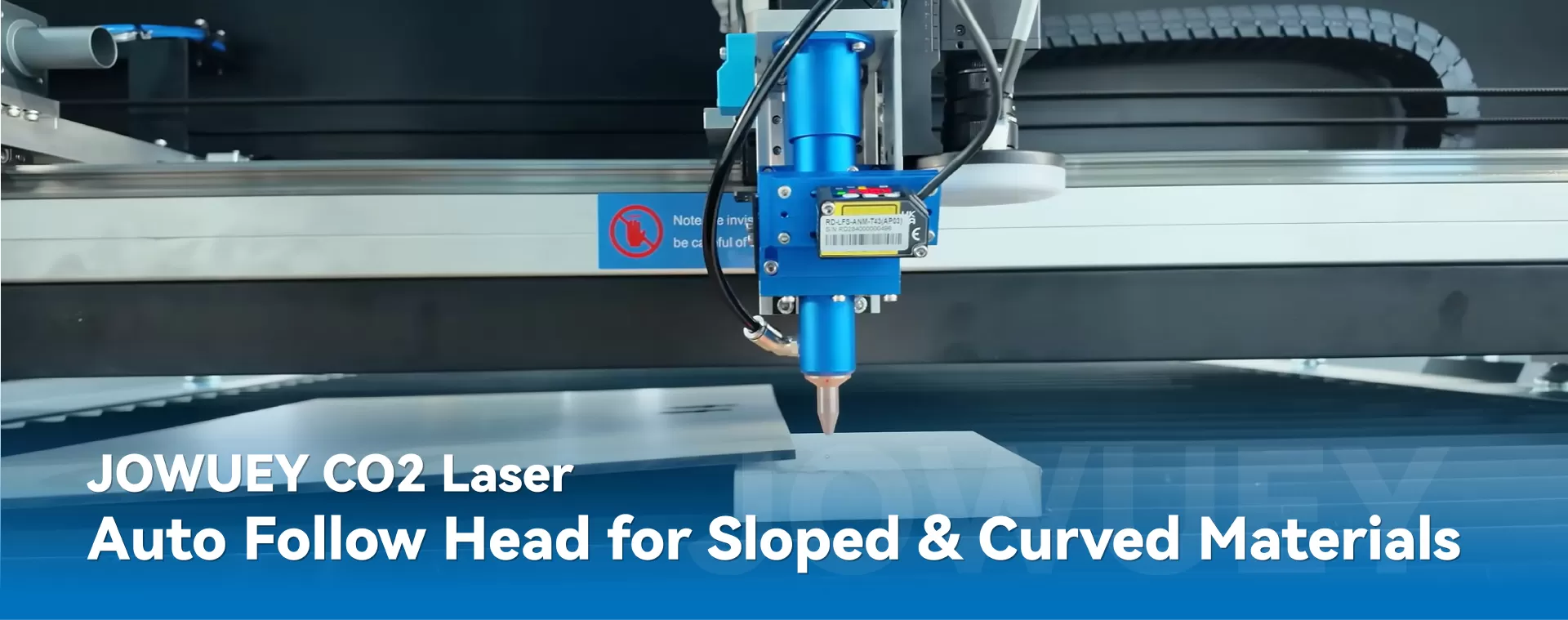

Auto focus co2 laser head adjusts in real time for curved and uneven materials
02
No secondary alignment needed – saves setup time and reduces errors
03
Intelligent control system with automatic path optimization for easy operation
04
Smooth, burr-free cutting surfaces with low operating noise
Parameters
Model | 1325 Auto-following Laser Head Co2 Laser Cutting |
Laser tube | Reci (Option:EFR, Yongli) |
Laser type | Glass cavity sealed CO2 laser wavelength 10.6um |
Laser tube cooling | Pure circulating water cooling |
Model | 1325/1625/1530/2030/2040 |
Working voltage | AC 220V±10%, 50/60HZ |
Total power | ＜3KW |
Control system | RD6332 |
Motor and Drive | Stepper motor and driver |
Transmission | Belt for X axis, gear rack transmission for Y axis |
Table | Blade or Honeycomb |
Positioning accuracy | ≤±0.05mm |
Cutting speed | 0-600mm/s |
Engraving speed | 0-1200mm/s |
Supporting Software | Photoshop, AutoCAD, CoreLDRAW |
Gross Weight | 450kg |
Logistical Packaging | 1950*1700*1250mm |
| Cutting thickness of different laser power for reference | |||
| Power/ Peak power | Acrylic | Wood | MDF |
| 80~100W | 8mm | 8mm | 3mm |
| 100~120W | 12mm | 11mm | 5mm |
| 130~150W | 15mm | 15mm | 18mm |
| 150~180W | 18mm | 18mm | 10mm |
| 300W | 25mm | 25mm | 18mm |
| 500W | 28mm | 25mm | 20mm |
| 600W | 40mm | 35mm | 30mm |
Machine Details

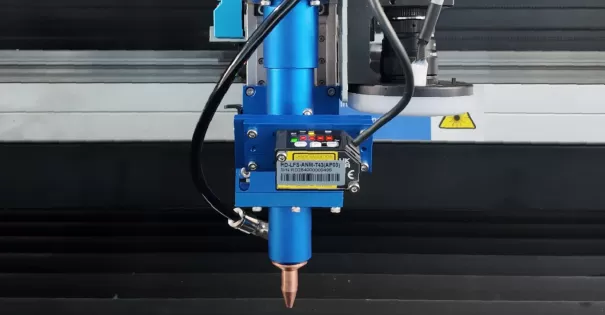

Laser Head with CCD
Automatically follow and adjust focusby lifting/lowering headThe camera system can recognize designs and patterns across the entire worktablesurface.lt automatically generates vectorgraphics based on printed motifs on fabrics.enabling direct cutting without manualdrawing

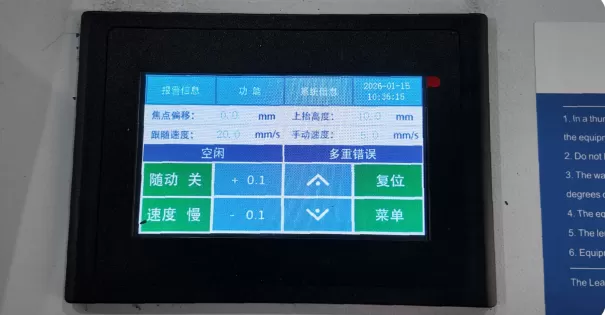

Ruida Control System
The Ruida control system is a leading solution in the laser processing industry, known for its stability, precision, and reliability

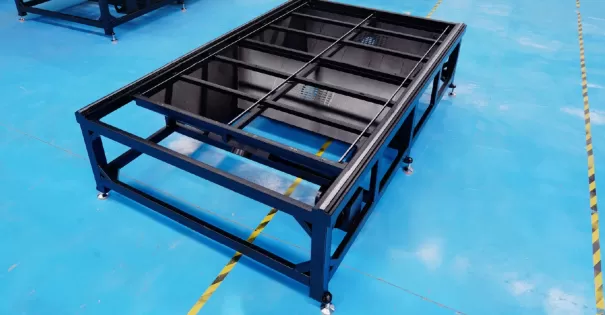

Machine bed
Heavy duty body, square tube welding, and with precision milling process, all above are ensure the stability when working and make perfect cutting effect and cutting accuracy

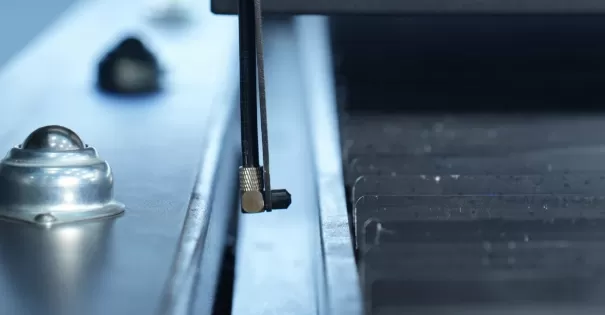

CNC machining of the guide rail
Surface ensures stable optical path; the guide rail is installed on a reference surface, achieving high assembly accuracy and cutting performance
The dual-side air blowing system
Designed to extinguish operational flames and remove smoke
Industry Applications
Plastic
Leather Cutting
MDF Craft
